Description

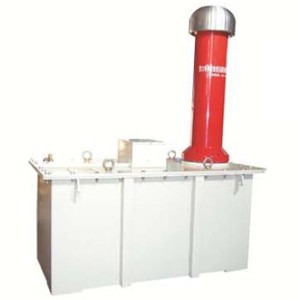

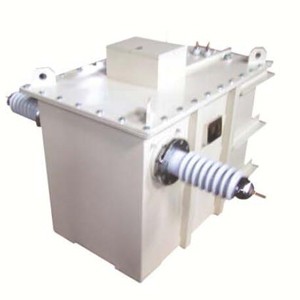

ZCDT series dc charging transformer
Overview
ZCDT series charging transformer it is mainly used for impulse voltage generator and dc high voltage generator power supply, Its characteristic is：input low voltage ac power supply, output dc high voltage power supply. And the output power of the positive and negative polarity can be arbitrary electric conversion.
Model | Rated capacity KVA | Input voltage KV | Output voltage KV | Output type |
ZCDT-5/50 | 5 | 0.22/0.38 | +/-50 | Double bushing |
ZCDT-10/50 | 10 | 0.22/0.38 | +/-50 | Double bushing |
ZCDT-20/50 | 20 | 0.22/0.38 | +/-50 | Double bushing |
ZCDT-30/50 | 30 | 0.22/0.38 | +/-50 | Double bushing |
ZCDT-40/50 | 40 | 0.22/0.38 | +/-50 | Double bushing |
ZCDT-30/100 | 30 | 0.22/0.38 | +/-100 | Double bushing |
ZCDT-50/100 | 50 | 0.22/0.38 | +/-100 | Double bushing |
ZCDT-60/100 | 60 | 0.22/0.38 | +/-100 | Double bushing |
ZCDT-80/100 | 80 | 0.22/0.38 | +/-100 | Double bushing |
ZCDT-120/100 | 120 | 0.22/0.38 | +/-100 | Double bushing |

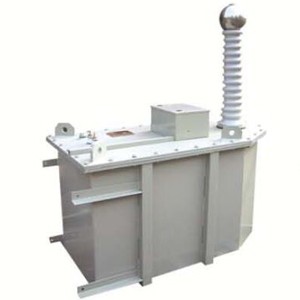

ZCDT1-8/150 | 8 | 0.22/0.38 | +/-150 | Single bushing |
ZCDT1-20/150 | 20 | 0.22/0.38 | +/-150 | Single bushing |
ZCDT1-30/150 | 30 | 0.22/0.38 | +/-150 | Single bushing |
ZCDT1-40/150 | 40 | 0.22/0.38 | +/-150 | Single bushing |
ZCDT1-60/150 | 60 | 0.22/0.38 | +/-150 | Single bushing |
Note: Above is for standard specification, We also accept customized order.
